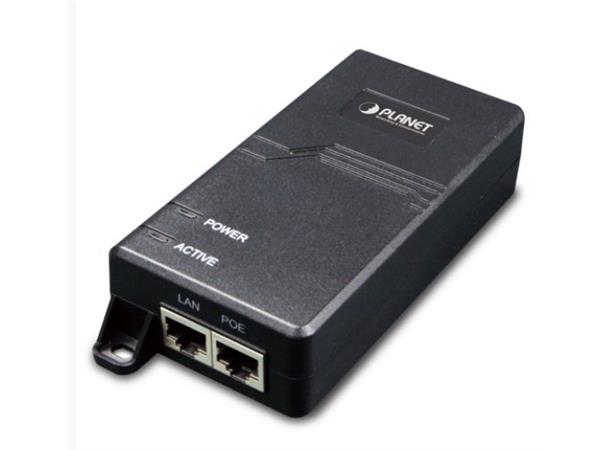

Planet POE-163

IEEE 802.3at Gigabit High Power over Ethernet Injector (Mid-Span)



Interface•2-port RJ-45 interfaces

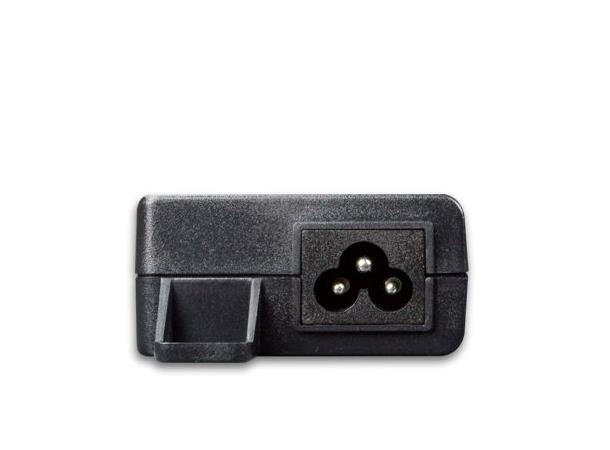

- 1-port Data + Power output- 1-port Data input•1 AC 100-240V input power socket
Power over Ethernet•1-port Gigabit High Power over Ethernet Mid-Span PSE
•IEEE 802.3at Power over Ethernet Plus compliant
•Backward compatible with IEEE 802.3af Power over Ethernet
•Supports PoE Power up to 30 watts for PoE port
•Up to 1 IEEE 802.3at devices powered
•Provides DC 53V power over RJ-45 Ethernet cable to device with Ethernet port
•Auto-detection of PoE IEEE 802.3at/af equipment and devices from being damaged by incorrect installation
•Remote power feeding up to 100m
Hardware•All-in-one design with internal power supply
•Compact size plastic case
•LED indicators for Power LED and Active LED (PoE ready / In-use)
