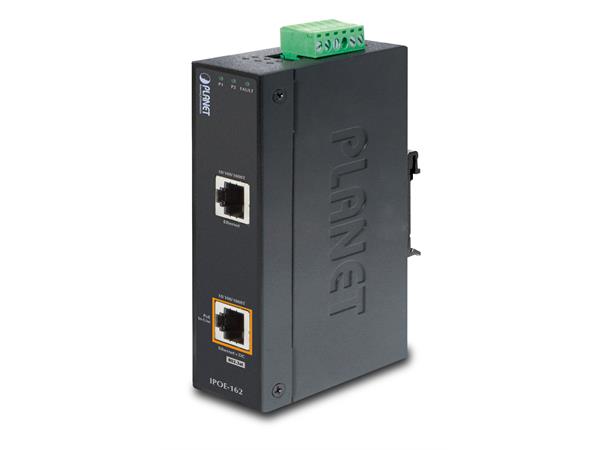

Planet IPOE-162
Industrial IEEE 802.3at Gigabit High Power over Ethernet Injector (Mid-Span)
Key Features
Interface
• 2-Port RJ-45 interfaces
– 1-Port Data + Power output
– 1-Port Data input
– One terminal block for master and slave power input. (Power Range: 24 ~ 48V DC / 24V AC
redundant power)
PoE
• Gigabit High Power over Ethernet Mid-Span PSE
• IEEE 802.3at / 802.3af PoE compliant
• IEEE 802.3at / 802.3af splitter devices compatible
• Supports PoE Power up to 30 Watts for each PoE port
• Provides DC 56V power over RJ-45 Ethernet cable to device with Ethernet port
• Auto-detect of IEEE 802.3at equipments and protects devices from being damaged by
incorrect installation
• Remote power feeding up to 100m
Hardware
• IP30 Slim Type Metal Case
• LED indicators for Power LED and PoE In-use
Industrial Case / Installation
• DIN Rail and Wall Mount Design
• Supports EFT protection 6000 VDC for power line
• Supports 6000 VDC Ethernet ESD protection
• -40 to 75 Degree C operation temperature
Standard Compliance
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3at / 802.3af Power over Ethernet standard
• FCC Part 15 Class A, CE
Ordering Information
IPOE-162 Industrial IEEE 802.3at Gigabit High Power over Ethernet Injector (Mid-Span, 30 Watts)
