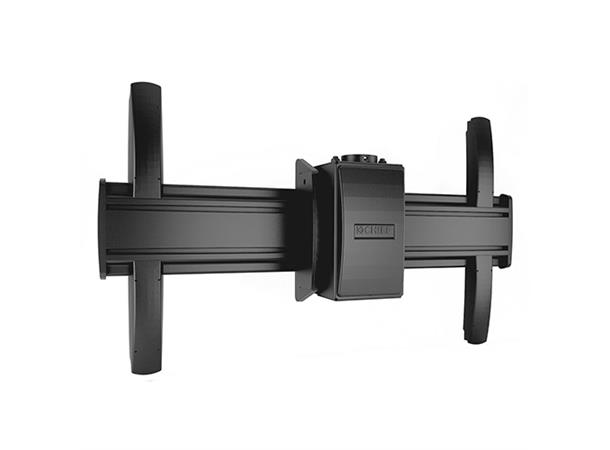

Chief LCM1UFUSION™ Large Flat Panel Ceiling Mount

Chiefs FUSION™ Flat Panel Ceiling Mounts are installer inspired and offer perfect TV positioning and flexible adjustments for large flat panel screens. Great for digital signage installations.

Ceiling Plate and extension column are required and must be ordered separately
Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
See CPA ceiling plates and CPA columns for pin conection compatibility Features
REPEATABILITY - Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.
ACCESSIBILITY - Simple on/off connection for ease of installation and service.
CENTRIS® FINGERTIP TILT - Effortlessly adjust display using Centris fingertip tilt technology.
SIMPLE & SECURE - Tool free screen engagement with optional padlock security.
FLEXIBILITY - Mount swivels to any preferred viewing angle.

Specifications:

Adjustments: Roll, +/- 3°
Certifications: UL Listed
Color: Black Equipment
Weight Capacity: 56.7 kg
Mounting Pattern Compatibility (Universal Versions): 200mm x 100mm - 616 x 400mm
Overall Dimensions (H x W x D): 404 x 681 x 162 mm
Tilt: + 5° , - 20°
