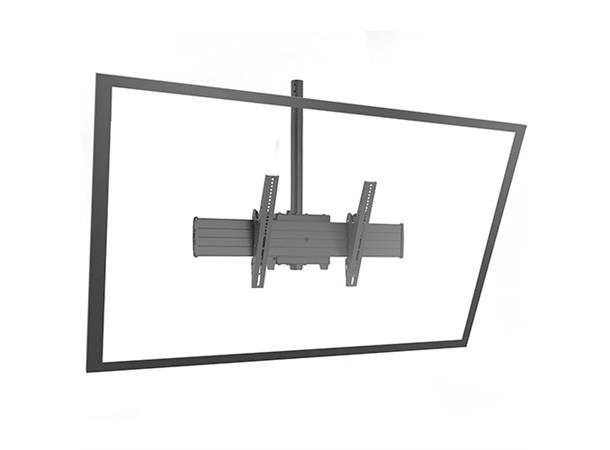

Chief XCM1U

FUSION™ X-Large Single Pole Flat Panel Ceiling Mounts



Chiefs FUSION™ Flat Panel Ceiling Mounts are installer inspired and offer perfect TV positioning and flexible adjustments for X-large flat panel screens. Great for digital signage installations.



The XCM1U is a single pole drop ceiling mount perfect for XL displays 5" deep and thinner. For deeper and heavier displays, see Chief's XCM7000 for a dual drop solution.
•Ceiling Plate and extension column are required and must be ordered separately
•Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
•See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
•See CPA ceiling plates and CPA columns for pin connection compatibility



Note:To ensure this mount works with your equipment check the "Compatibility" tab below.



Features
•REPEATABILITY
Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.
•ACCESSIBILITY
Simple on/off connection for ease of installation and service.
•CENTRIS® FINGERTIP TILT
Effortlessly adjust display using Centris fingertip tilt technology.
•SIMPLE & SECURE
Tool free screen engagement with optional padlock security.
•FLEXIBILITY
Mount swivels to any preferred viewing angle.



Specifications

Certifications: UL Listed

Color: Black

Mounting Pattern Compatibility (Universal Versions): 200 x 100 mm - 800 x 400 mm

Overall Dimensions (H x W x D): 16.8" x 34.8" x 7.9" (423 x 885 x 200mm)

Post-Installation Leveling (Roll): Yes

Shipping Weight: 12 kg

Tilt: + 5° , - 20°

Typical Screen Sizes: 60 - 90"

Weight Capacity: 250 lbs (113 kg)
