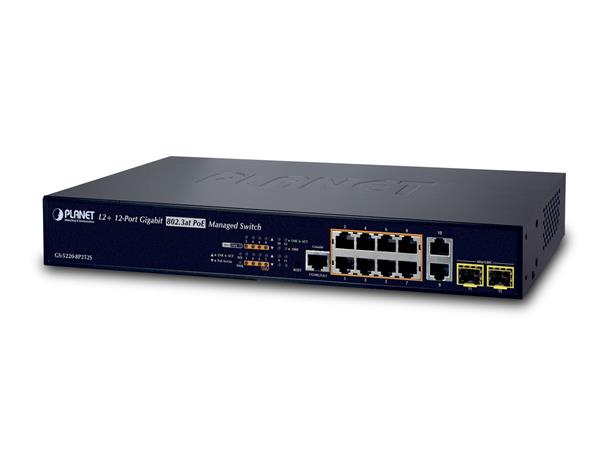

L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch



Physical Port•10-Port 10/100/1000BASE-T RJ45 copper with 8-Port IEEE 802.3at/af Power over Ethernet Injector function
•2 100/1000BASE-X mini-GBIC/SFP slots
•RJ45 console interface for basic management and setup



Power over Ethernet•Complies with IEEE 802.3at High Power over Ethernet end-span PSE
•Complies with IEEE 802.3af Power over Ethernet end-span PSE
•Up to 8 ports of IEEE 802.3af/802.3at devices powered
•Supports PoE Power up to 30.8 watts for each PoE port
•Auto detects powered device (PD)
•Circuit protection prevents power interference between ports
•Remote power feeding up to 100 meters
•PoE Management
- Total PoE power budget control- Per port PoE function enable/disable- PoE Port Power feeding priority- Per PoE port power limitation- PD classification detection- PD alive check- PoE schedule- PD power recycling schedule
Layer 2 Features•Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
•High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
•Storm Control support
- Broadcast / Multicast / Unknown unicast•Supports VLAN- IEEE 802.1Q tagged VLAN- Up to 255 VLANs groups, out of 4094 VLAN IDs- Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)- Private VLAN Edge (PVE)- Protocol-based VLAN- MAC-based VLAN- Voice VLAN
•Supports Spanning Tree Protocol
- STP, IEEE 802.1D Spanning Tree Protocol- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN- BPDU Guard•Supports Link Aggregation
- 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (static trunk)- Maximum 6 trunk groups, up to 8 ports per trunk group- Up to 16Gbps bandwidth (full duplex mode)•Provides port mirror (many-to-1)
•Port mirroring to monitor the incoming or outgoing traffic on a particular port
•Loop protection to avoid broadcast loops



Layer 3 IP Routing Features•Supports maximum 32 static routes and route summarization



Quality of Service•Ingress Shaper and Egress Rate Limit per port bandwidth control
•8 priority queues on all switch ports
•Traffic classification
- IEEE 802.1p CoS- TOS/DSCP/IP Precedence of IPv4/IPv6 packets- IP TCP/UDP port number- Typical network application•Strict priority and Weighted Round Robin (WRR) CoS policies
•Supports QoS and In/Out bandwidth control on each port
•Traffic-policing policies on the switch port
•DSCP remarking



Multicast•Supports IGMP Snooping v1, v2 and v3
•Supports MLD Snooping v1 and v2
•Querier mode support
•IGMP Snooping port filtering
•MLD Snooping port filtering
•Multicast VLAN Registration (MVR) support



Security•Authentication
- IEEE 802.1x Port-based/MAC-based network access authentication- Built-in RADIUS client to co-operate with the RADIUS servers- TACACS+ login users access authentication- RADIUS/TACACS+ users access authentication•Access Control List
- IP-based Access Control List (ACL)- MAC-based Access Control List•Source MAC/IP address binding
•DHCP Snooping to filter un-trusted DHCP messages
•Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
•IP Source Guard prevents IP spoofing attacks
•Auto DoS rule to defend DoS attack
•IP address access management to prevent unauthorized intruder



Management•IPv4 and IPv6 dual stack management
•Switch Management Interfaces
- Console/Telnet Command Line Interface- Web switch management- SNMP v1, v2c, and v3 switch management- SSH/SSL secure access•IPv6 IP Address/NTP/DNS management
•Built-in Trivial File Transfer Protocol (TFTP) client
•BOOTP and DHCP for IP address assignment
•System Maintenance
- Firmware upload/download via HTTP/TFTP- Reset button for system reboot or reset to factory default- Dual Images•DHCP Relay
•DHCP Option82
•User Privilege levels control
•NTP (Network Time Protocol)
•Link Layer Discovery Protocol (LLDP) and LLDP-MED
•Network Diagnostic
- ICMPv6/ICMPv4 Remote Ping- Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues•SMTP/Syslog remote alarm
•Four RMON groups (history, statistics, alarms and events)
•SNMP trap for interface Linkup and Linkdown notification
•System Log
•PLANET Smart Discovery Utility for deployment management
